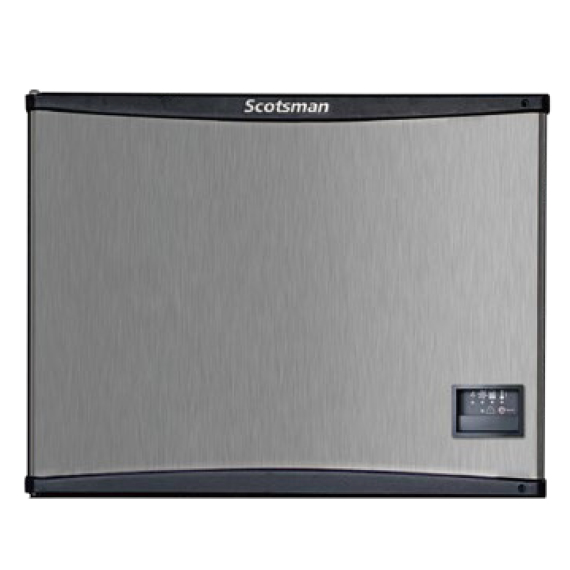

Scotsman NXW 607
Modular dice ice machine, produces 280Kg every 24hrs, designed to be fitted to a separate storage bin.
Ideal for busy Cafes, Coffee Shops, Hotels and Fast Food Outlets
Max Production (24 hours)
280 KG
Dice Ice
Modular dice ice machine, produces 280Kg every 24hrs, designed to be fitted to a separate storage bin.
Ideal for busy Cafes, Coffee Shops, Hotels and Fast Food Outlets
| Model |
Scotsman NXW 607 (head only) |
| Dimensions (W x D x H) |
767 x 636 x 600 mm |
| Max production / 24hrs |
280 Kg |
| Recommended storage bins |
SB 393 (181Kg) or SB 530 (243Kg) |
| Cube size(s) |
Half 6g, Dice 10g or Large 15g |
| Unit weight (net) |
75 Kg |
| Water consumption (A) |
13.2 Litre/hr |
| Energy consumption (A) |
25.4 kWh/24hr |
| Refrigeration |
R290 |
| Voltage |
230v / 50hz / 1ph |
| Fuse / CB rating |
16 amps |
| Recommended water filter |
3M HF60-S |
Ice Storage Bins & Transportation
Scotsman NXW modular ice machines require a suitable ice storage bin to compliment the production capabilities of the head unit.
Scotsman manufacture a range of ice bins in the NB/SB and UBH series. These ice storage solutions come in a variety of different dimensions and capacities allowing you to customise an ice production solution that’s perfect for your specific business needs.
Larger modular ice machines could benefit from being paired with either SIS or ITS ice transport bin which make the handling of large volumes of ice easier and more hygienic.
Features of the Scotsman NXW 607 include
• Dice, Half Dice or Large solid ice cubes
• Meets ENERGY STAR and LEED Eligibility Criteria
• SELF SANITATION System XSafe®
• Natural refrigerant R290 with GWP 3 and ODP 0
• Very large air vents, keeping high yield in hot environment
• Hinged front panel
• Tools free removal of internal parts (water sump, distribution tube, pump, etc)
• Super easy internal cleaning
• Remote service support capability with XWave free App.
• Delayed automatic start
• Automatic Cleaning cycle
Scotsman Dice Ice
Dice cubes provide maximum liquid displacement making this type of ice cube ideal for general purpose cooling of drinks. They can be made very quickly and are ideal for outlets needing high volumes of ice, such as fast food outlets. Dice cubes are available in three different sizes; half dice, dice and large dice to suit any application.
The ‘softer‘ texture of dice ice makes it the ideal ice for blended smoothies and cocktails as it smashes quickly without putting excessive strain on blender bearings.
Water is poured over the surface of a vertical evaporator grid plate with each cube forming in a cell on the grid. This is the most cost-efficient system where volume is the prime importance.
Related products
Ideal for busy Cafes, Coffee Shops, Hotels and Fast Food Outlets
Ideal for busy Cafes, Coffee Shops, Hotels and Fast Food Outlets
Ideal for use with medium capacity MXG, NW, MF and MFN modular ice makers.
Ideal for ice machines which produce between 300 to 600Kg every 24hrs.
Scotsman XSafe
XSafe is a totally natural sanitation system which is fully integrated inside the ice machine. It operates automatically 24 hours a day 7 days a week to keep your ice making equipment clean and safe.
The system destroys over 99% of known viruses and bacteria (including corona-viruses), and substantially reduces the formation of mould, mildew, yeast and slime within the machine preventing unpleasant odours from occurring.
