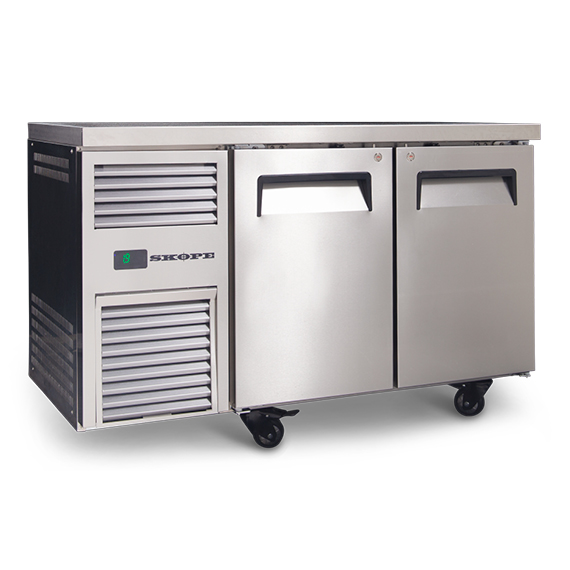

SKOPE ReFlex 2 Door Undercounter Freezer
The SKOPE ReFlex RF7.UBF.2.SD is a high-capacity commercial underbench freezer designed for demanding foodservice environments requiring reliable frozen storage. Featuring heavy-duty stainless steel construction, a removable side-mounted refrigeration cartridge and smart connectivity capability.
Two Door Undercounter Freezer
202 L
Freezer
The SKOPE ReFlex RF7.UBF.2.SD is a high-capacity commercial underbench freezer designed for demanding foodservice environments requiring reliable frozen storage. Featuring heavy-duty stainless steel construction, a removable side-mounted refrigeration cartridge and smart connectivity capability.
| Model |
SKOPE – RF7.UBF.2.SD |
| Dimensions (WxDxH) |
1290 x 700 x 850 mm |
| Weight/Volume (net) |
112 Kg / 202 L |
| Temperature range |
-21°C to -18°C (adjustable with SKOPE-connect™ -26°C to -12°C) |
| Max ambient temperature |
+40°C |
| Energy consumption |
7.27 kWh/24 h |
| Ventilation requirements |
No ventilation required on top, sides, back or bottom. All ventilation through front panel. |
| Refrigeration |
R290 |
| Voltage |
230v / 50hz / 1ph |
| Current draw / nominal capacity |
4.0 amp / 500 watts |
2 Solid Door Underbench Freezer
The SKOPE ReFlex RF7.UBF.2.SD is a high-capacity commercial underbench freezer designed for demanding foodservice environments requiring reliable frozen storage. Featuring heavy-duty stainless steel construction, a removable side-mounted refrigeration cartridge and smart connectivity capability, this model provides dealers and resellers with a powerful specification for hospitality, healthcare, education and contract catering projects across the UK.
Built for Demanding Commercial Kitchens
Constructed with 304 AISI stainless steel interior and exterior, the RF7.UBF.2.SD delivers long-term durability in busy commercial kitchens. The coved internal floor improves hygiene and simplifies cleaning, while two self-closing, lockable solid doors (left and right hand) provide secure and convenient access.
The integrated 45mm thick stainless steel worktop, built over an insulated cyclopentane foamed core, allows the unit to double as a practical preparation surface, helping operators maximise valuable kitchen workspace.
With external dimensions of 850mm (H) x 1290mm (W) x 700mm (D) (with castors fitted), the cabinet provides generous frozen storage capacity while maintaining an efficient undercounter footprint.
Powerful Frozen Storage Performance
Designed to deliver reliable freezing performance in high ambient environments:
- Temperature range: -21°C to -18°C (adjustable via SKOPE-connect™ from -26°C to -12°C)
- Maximum ambient temperature: 40°C
- Refrigerant: R290 natural refrigerant (90g)
- Energy consumption: 7.27 kWh per 24 hours
- GEMS Class: 5L1
The 40°C ambient rating ensures reliable operation even in the hottest commercial kitchens, making this unit ideal for demanding production environments.
Side-Mounted Removable Refrigeration Cartridge
The RF7.UBF.2.SD features a side-mounted, integral, removable refrigeration cartridge, simplifying servicing and reducing downtime.
For dealers and service partners, this offers:
- Faster maintenance access
- Reduced on-site disruption
- Lower lifetime service costs
- Enhanced support for multi-site operators
This service-friendly design strengthens the long-term value proposition for end users.
Smart Connectivity as Standard
The RF6.UBR.1.SD features the SCS Connect controller, compatible with SKOPE-connect™ via Bluetooth wireless technology.
For dealers and multi-site operators, this enables:
- Remote temperature monitoring
- Data visibility for compliance reporting
- Improved food safety assurance
- Reduced service risk through proactive monitoring
Connectivity adds measurable value, particularly for national chains, facilities managers and healthcare operators requiring temperature control documentation
Flexible Storage Configuration
- 2 solid swing doors (left and right hand)
- 4 adjustable height shelves (bottom shelves supplied floor mounted)
- Internal LED lighting (400mm, 4W, door activated)
- Net volume: 202 litres
- Gross volume: 248 litres
The wide cabinet design delivers generous chilled storage capacity, ideal for prep kitchens, production environments and high-volume hospitality operations.
Installation Versatility
Engineered for ease of specification and installation:
- 220–240V single phase supply
- Supplied with 13 amp plug and 2m lead
- Supplied with removable castors
- Optional height-adjustable legs (865mm–905mm)
- No plumbing required
- No ventilation clearance required (top, sides, back or bottom)
The zero-clearance ventilation design allows true flush installation, offering flexibility in tight commercial kitchen layouts.
Related SKOPE products
A Premium Addition to Your Refrigeration Portfolio
As part of the SKOPE ReFlex range, the RF7.UBF.2.SD provides a scalable solution for projects requiring greater capacity and enhanced serviceability.
Key dealer benefits include:
- 40°C ambient rating for demanding environments
- Natural refrigerant compliance
- Removable refrigeration cartridge for easier servicing
- Integrated prep-grade stainless steel worktop
- Smart connectivity capability
- Generous 1290mm wide storage footprint
The RF7.UBF.2.SD delivers a specification-led underbench refrigeration solution designed to meet the operational and compliance demands of modern UK foodservice operators.
