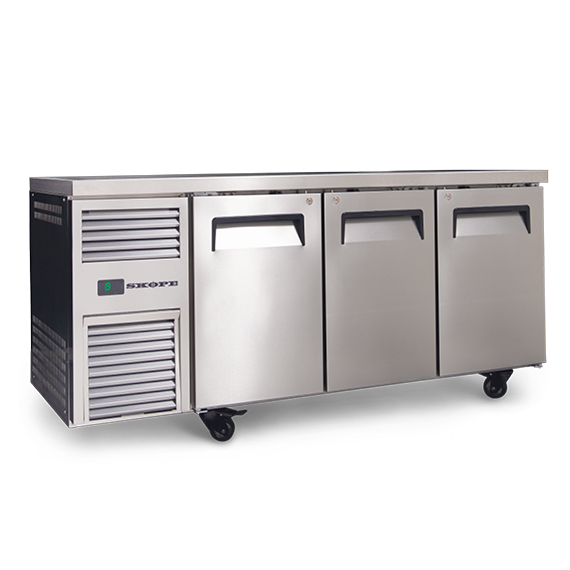

SKOPE ReFlex 3 Door Undercounter Freezer
The SKOPE ReFlex RF7.UBF.3.SD is a high-capacity commercial underbench freezer engineered for demanding foodservice environments where reliable frozen storage and easy access are essential. With robust stainless steel construction, a removable freezer cartridge and smart connectivity capability.
Three Door Undercounter Freezer
319 L
Freezer
The SKOPE ReFlex RF7.UBF.3.SD is a high-capacity commercial underbench freezer engineered for demanding foodservice environments where reliable frozen storage and easy access are essential. With robust stainless steel construction, a removable freezer cartridge and smart connectivity capability.
| Model |
SKOPE – RF7.UBF.3.SD |
| Dimensions (WxDxH) |
1750 x 700 x 850 mm |
| Weight/Volume (net) |
136 Kg / 319L |
| Temperature range |
-21°C to -18°C (adjustable with SKOPE-connect™ -26°C to -12°C) |
| Max ambient temperature |
+40°C |
| Energy consumption |
9.45 kWh/24 h |
| Ventilation requirements |
No ventilation required on top, sides, back or bottom. All ventilation through front panel. |
| Refrigeration |
R290 |
| Voltage |
230v / 50hz / 1ph |
| Current draw / nominal capacity |
4.0 amp / 500 watts |
3 Solid Door Underbench Freezer
The SKOPE ReFlex RF7.UBF.3.SD is a high-capacity commercial underbench freezer engineered for demanding foodservice environments where reliable frozen storage and easy access are essential. With robust stainless steel construction, a removable freezer cartridge and smart connectivity capability, this model offers dealers and resellers a powerful specification for hospitality, healthcare, education and high-volume catering operations across the UK.
Built for High-Demand Commercial Kitchens
Constructed with 304 AISI stainless steel interior and exterior, the RF7.UBF.3.SD is designed for durability in busy professional kitchens. The coved internal floor improves hygiene and simplifies cleaning, while the insulated 45mm stainless steel worktop (over a cyclopentane foamed core) allows the cabinet to double as a practical preparation surface.
The cabinet features three self-closing solid swing doors with integrated locks, providing secure frozen storage and convenient access during service. With external dimensions of 850mm (H) x 1750mm (W) x 700mm (D) (with castors fitted), the unit offers substantial frozen storage capacity while maintaining an underbench footprint suited to commercial kitchen layouts.
Powerful Frozen Storage Performance
Engineered for reliable freezing performance in demanding environments:
- Temperature range: -21°C to -18°C (adjustable via SKOPE-connect™ from -26°C to -12°C)
- Maximum ambient temperature: 40°C
- Refrigerant: R290 natural refrigerant (90g)
- Energy consumption: 9.45 kWh per 24 hours
- GEMS Class: 4L1
The 40°C ambient rating ensures dependable operation even in hot commercial kitchens where consistent freezing performance is critical.
Removable Side-Mounted Freezer Cartridge
The RF7.UBF.3.SD incorporates a side-mounted integral removable freezer cartridge, allowing simplified servicing and reduced maintenance downtime.
For dealers and service engineers this provides:
- Faster maintenance access
- Reduced disruption during servicing
- Lower long-term maintenance costs
- Improved operational uptime for operators
This modular refrigeration design makes the cabinet particularly suitable for high-dependency kitchens and multi-site hospitality operators.
Smart Connectivity as Standard
The RF6.UBR.1.SD features the SCS Connect controller, compatible with SKOPE-connect™ via Bluetooth wireless technology.
For dealers and multi-site operators, this enables:
- Remote temperature monitoring
- Data visibility for compliance reporting
- Improved food safety assurance
- Reduced service risk through proactive monitoring
Connectivity adds measurable value, particularly for national chains, facilities managers and healthcare operators requiring temperature control documentation
Flexible Internal Storage Configuration
- 3 self-closing solid swing doors
- 6 adjustable height shelves
- Door-activated LED lighting (2 × 400mm, 4W)
- Net storage capacity: 319 litres
- Gross volume: 387 litres
The wide three-door configuration provides generous frozen storage capacity while maintaining organised access to stored products.
Installation Versatility
Designed for simple specification and installation:
- 220–240V single phase supply
- Supplied with 13 amp plug and 2m lead
- Supplied with removable castors
- Optional height-adjustable legs (865mm–905mm)
- No plumbing required
- No ventilation clearance required (top, sides, back or bottom)
The zero-clearance ventilation design allows the unit to be installed flush within kitchen counters or preparation areas.
Related SKOPE products
A High-Capacity Addition to Your Refrigeration Portfolio
As part of the SKOPE ReFlex refrigeration platform, the RF7.UBF.3.SD provides dealers with a large-capacity underbench freezer that complements the solid-door fridge models within the range.
Key dealer benefits include:
- Large 1750mm wide cabinet capacity
- 40°C ambient performance rating
- Natural refrigerant compliance
- Removable freezer cartridge for simplified servicing
- Smart connectivity capability
- Durable stainless steel prep worktop
The RF7.UBF.3.SD delivers a powerful combination of capacity, performance and serviceability, making it ideal for demanding commercial kitchen environments.
