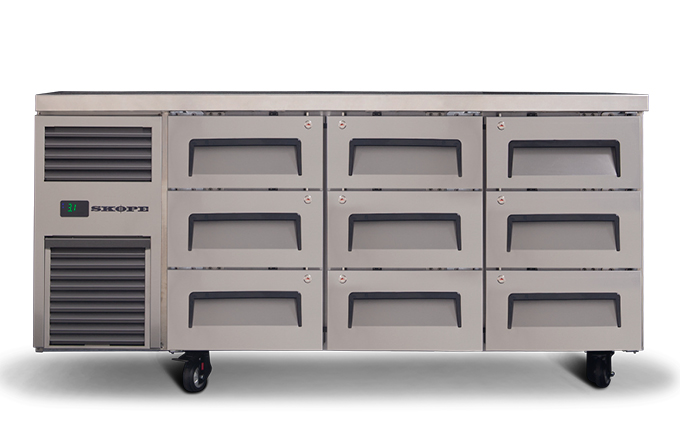

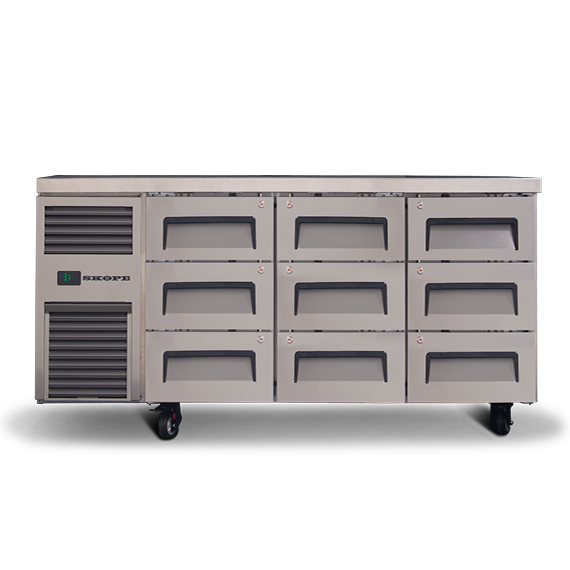

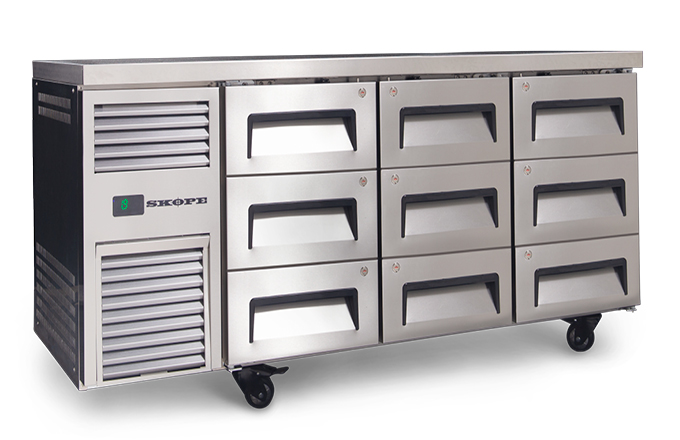

SKOPE ReFlex 9 Drawer Undercounter Fridge
The SKOPE ReFlex RF7.UBR.3.D9 is a high-capacity commercial underbench drawer fridge designed for professional kitchens that require organised ingredient storage and rapid access during service. With nine fully extendible refrigerated drawers, robust stainless steel construction and smart connectivity capability.
Nine Draw Undercounter Fridge
136 L
Refrigerator
The SKOPE ReFlex RF7.UBR.3.D9 is a high-capacity commercial underbench drawer fridge designed for professional kitchens that require organised ingredient storage and rapid access during service. With nine fully extendible refrigerated drawers, robust stainless steel construction and smart connectivity capability.
| Model |
SKOPE – RF7.UBR.3.9D |
| Dimensions (WxDxH) |
1290 x 700 x 850 mm |
| Weight/Volume (net) |
184 Kg / 136 L |
| Temperature range |
+1°C to +4°C (adjustable with SKOPE-connect™ -2°C to +15°C) |
| Max ambient temperature |
+40°C |
| Energy consumption |
3.27 kWh/24 h |
| Ventilation requirements |
No ventilation required on top, sides, back or bottom. All ventilation through front panel. |
| Refrigeration |
R290 |
| Voltage |
230v / 50hz / 1ph |
| Current draw / nominal capacity |
2.0 amp / 650 watts |
9 Drawer Underbench Fridge
The SKOPE ReFlex RF7.UBR.3.D9 is a high-capacity commercial underbench drawer fridge designed for professional kitchens that require organised ingredient storage and rapid access during service. With nine fully extendible refrigerated drawers, robust stainless steel construction and smart connectivity capability, this model provides dealers and resellers with a powerful refrigeration solution for hospitality, healthcare, education and high-volume catering operations across the UK.

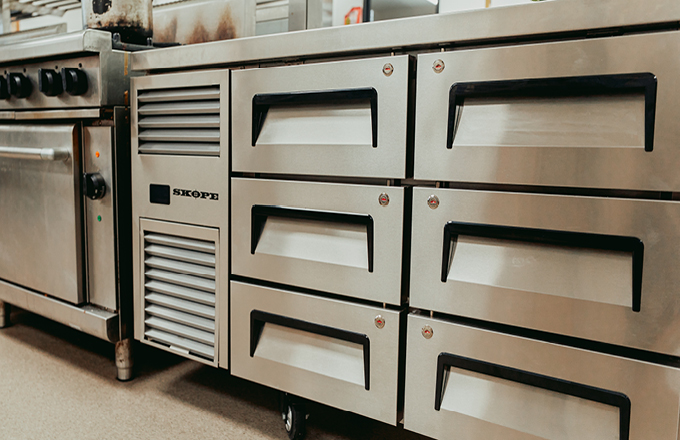

Built for High-Performance Commercial Kitchens
Constructed with 304 AISI stainless steel interior and exterior, the RF7.UBR.3.D9 is engineered for durability in demanding foodservice environments. The coved internal floor improves hygiene and simplifies cleaning, while the heavy-duty 45mm stainless steel worktop (over an insulated cyclopentane foamed core) allows the cabinet to double as a practical preparation surface.
The cabinet features nine fully extendible refrigerated stainless steel drawers, arranged in three banks of drawers. Each drawer includes individual key locks and is designed to accept GN 1/1 gastronorm pans up to 100mm deep (sold separately), allowing chefs to organise ingredients efficiently while maintaining optimal food safety.
With external dimensions of 850mm (H) x 1750mm (W) x 700mm (D) (with castors fitted), the unit provides excellent refrigerated storage organisation while maintaining a practical underbench footprint.
Reliable Chilled Performance
Engineered to deliver stable refrigeration in demanding kitchen environments:
- Temperature range: 1°C to 4°C (adjustable via SKOPE-connect™ from -2°C to 15°C)
- Maximum ambient temperature: 40°C
- Refrigerant: R290 natural refrigerant (95g)
- Energy consumption: 3.27 kWh per 24 hours
- GEMS Class: 4M1
The 40°C ambient rating ensures reliable performance even in hot commercial kitchens where refrigeration equipment must perform under pressure.
Removable Side-Mounted Refrigeration Cartridge
The RF7.UBR.3.D9 incorporates a side-mounted integral removable refrigeration cartridge, simplifying maintenance and reducing equipment downtime.
For dealers and service engineers this offers:
- Faster servicing access
- Reduced maintenance disruption
- Lower lifetime service costs
- Improved operational uptime for operators
This modular refrigeration design is particularly beneficial for multi-site operators and high-volume kitchens.
Smart Connectivity as Standard
The RF6.UBR.1.SD features the SCS Connect controller, compatible with SKOPE-connect™ via Bluetooth wireless technology.
For dealers and multi-site operators, this enables:
- Remote temperature monitoring
- Data visibility for compliance reporting
- Improved food safety assurance
- Reduced service risk through proactive monitoring
Connectivity adds measurable value, particularly for national chains, facilities managers and healthcare operators requiring temperature control documentation
Flexible Drawer Storage Configuration
- 9 fully extendible stainless steel refrigerated drawers
- Drawers designed to accept GN 1/1 gastronorm pans (100mm deep)
- Individual drawer key locks
- Net storage capacity: 136 litres
- Gross volume: 397 litres
The drawer configuration allows chefs to organise ingredients efficiently, improving workflow and speed during food preparation and service.
Installation Versatility
Designed for easy specification and installation:
- 220–240V single phase supply
- Supplied with 13 amp plug and 2m lead
- Supplied with removable castors
- Optional height-adjustable legs (865mm–905mm)
- No plumbing required
- No ventilation clearance required (top, sides, back or bottom)
The zero-clearance ventilation design allows the cabinet to be installed flush within counters or tight kitchen layouts.
Related SKOPE products
A Premium Addition to Your Refrigeration Portfolio
As part of the SKOPE ReFlex refrigeration platform, the RF7.UBR.3.D9 provides dealers with a highly practical refrigerated drawer solution that complements solid-door, glass-door and freezer models within the range.
Key dealer benefits include:
- Nine fully extendible refrigerated drawers
- GN-compatible ingredient storage
- 40°C ambient performance rating
- Natural refrigerant compliance
- Removable refrigeration cartridge for simplified servicing
- Smart connectivity capability
The RF7.UBR.3.D9 delivers an organised, chef-friendly refrigeration solution designed to support efficient workflows in modern commercial kitchens.
