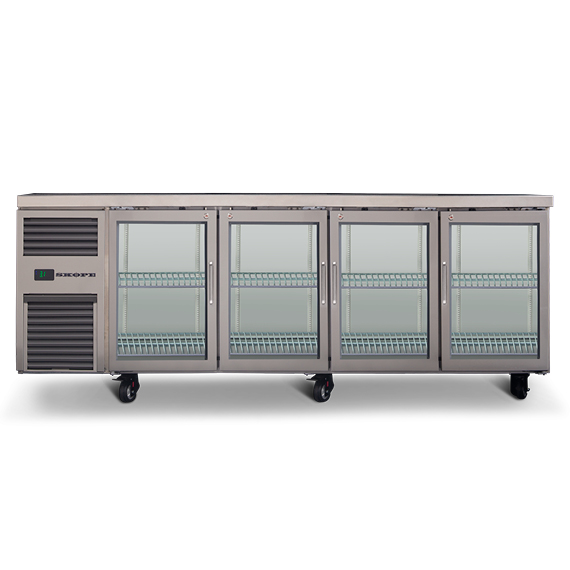

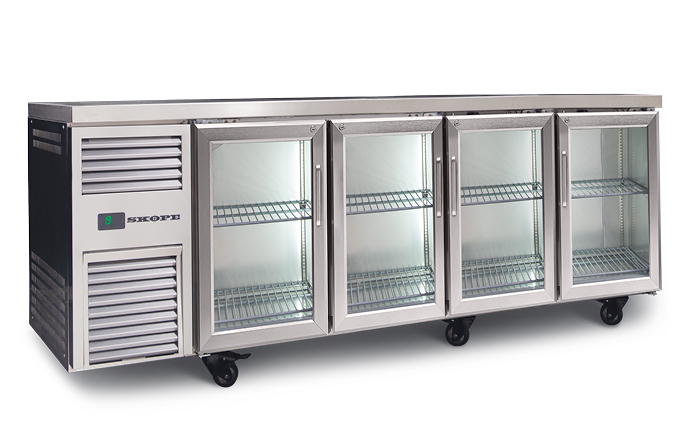

SKOPE ReFlex 4 Glass Door Undercounter Fridge
The SKOPE ReFlex RF7.UBR.4.GD is a high-capacity commercial underbench display fridge designed for busy hospitality environments where product visibility, storage capacity and reliable performance are essential. Featuring durable stainless steel construction, four double-glazed glass doors and smart connectivity capability.
Four Glass Door Undercounter Fridge
436 L
Refrigerator
The SKOPE ReFlex RF7.UBR.4.GD is a high-capacity commercial underbench display fridge designed for busy hospitality environments where product visibility, storage capacity and reliable performance are essential. Featuring durable stainless steel construction, four double-glazed glass doors and smart connectivity capability.
| Model |
SKOPE – RF7.UBR.4.GD |
| Dimensions (WxDxH) |
2210 x 730 x 850 mm |
| Weight/Volume (net) |
167 Kg / 436L |
| Temperature range |
+1°C to +4°C (adjustable with SKOPE-connect™ -2°C to +15°C) |
| Max ambient temperature |
+40°C |
| Energy consumption |
4.47 kWh/24 h |
| Ventilation requirements |
No ventilation required on top, sides, back or bottom. All ventilation through front panel. |
| Refrigeration |
R290 |
| Voltage |
230v / 50hz / 1ph |
| Current draw / nominal capacity |
2.0 amp / 650 watts |
4 Glass Door Underbench Fridge
The SKOPE ReFlex RF7.UBR.4.GD is a high-capacity commercial underbench display fridge designed for busy hospitality environments where product visibility, storage capacity and reliable performance are essential. Featuring durable stainless steel construction, four double-glazed glass doors and smart connectivity capability, this model provides dealers and resellers with a powerful refrigeration solution for bars, restaurants, cafés and high-volume foodservice operations across the UK.
Built for Demanding Commercial Environments
Constructed with 304 AISI stainless steel interior and exterior, the RF7.UBR.4.GD is engineered for durability in demanding commercial kitchens and bar environments. The coved internal floor improves hygiene and simplifies cleaning, while the 45mm stainless steel worktop (over an insulated cyclopentane foamed core) allows the cabinet to double as a practical preparation or service counter.

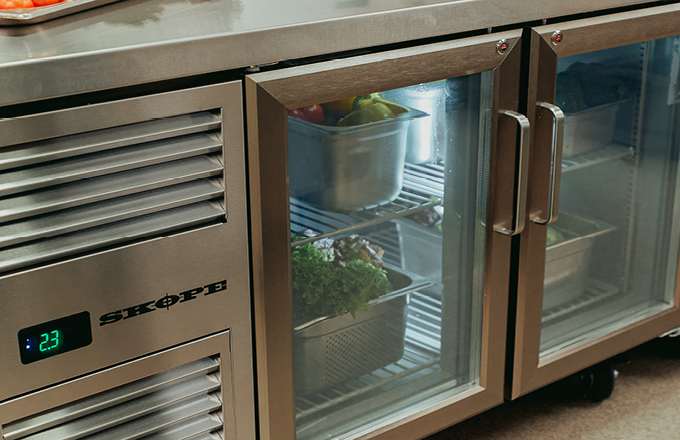

The cabinet features four self-closing, lockable double-glazed glass swing doors with double low-E glass, providing excellent product visibility while maintaining strong thermal insulation and temperature stability.
With external dimensions of 850mm (H) x 2210mm (W) x 730mm (D) (including door handles), the unit delivers exceptional chilled storage capacity while maintaining a practical underbench footprint suited to commercial kitchen and bar installations.
Reliable Chilled Performance
Engineered to deliver consistent refrigeration performance in demanding environments:
- Temperature range: 1°C to 4°C (adjustable via SKOPE-connect™ from -2°C to 15°C)
- Maximum ambient temperature: 40°C
- Refrigerant: R290 natural refrigerant (95g)
- Energy consumption: 4.47 kWh per 24 hours
- GEMS Class: 4M1
The high ambient rating ensures reliable operation even in hot kitchen and bar environments where refrigeration equipment must perform under pressure.
Removable Side-Mounted Refrigeration Cartridge
The RF7.UBR.4.GD incorporates a side-mounted integral removable refrigeration cartridge, simplifying maintenance and reducing downtime.
For dealers and service engineers this provides:
- Faster servicing and maintenance access
- Reduced operational disruption
- Lower long-term service costs
- Improved uptime for operators
This modular refrigeration design is particularly valuable for high-volume hospitality venues and multi-site operators.
Smart Connectivity as Standard
The RF6.UBR.1.SD features the SCS Connect controller, compatible with SKOPE-connect™ via Bluetooth wireless technology.
For dealers and multi-site operators, this enables:
- Remote temperature monitoring
- Data visibility for compliance reporting
- Improved food safety assurance
- Reduced service risk through proactive monitoring
Connectivity adds measurable value, particularly for national chains, facilities managers and healthcare operators requiring temperature control documentation
Flexible Display Storage Configuration
- 4 double-glazed glass swing doors
- 8 adjustable height shelves
- Internal LED lighting (3 × 400mm, 4W)
- Net storage capacity: 436 litres
- Gross volume: 526 litres
The glass-door design allows operators to easily view stock without opening the cabinet, improving efficiency and reducing temperature loss during busy service periods.
Installation Versatility
Designed for easy specification and installation:
- 220–240V single phase supply
- Supplied with 10 amp plug and 2m lead
- Supplied with removable castors (Ø100 wheels)
- Optional height-adjustable legs (865mm–905mm)
- No plumbing required
- No ventilation clearance required (top, sides, back or bottom)
The zero-clearance ventilation design enables flush installation within counters or tight commercial kitchen layouts.
Related SKOPE products
A Versatile Addition to Your Refrigeration Portfolio
As part of the SKOPE ReFlex refrigeration platform, the RF7.UBR.4.GD provides dealers with a maximum-capacity underbench display refrigeration solution that complements the solid-door and freezer models within the range.
Key dealer benefits include:
- Four double-glazed glass doors for excellent product visibility
- Large 2210mm wide cabinet capacity
- 40°C ambient performance rating
- Natural refrigerant compliance
- Removable refrigeration cartridge for simplified servicing
- Smart connectivity capability
The RF7.UBR.4.GD delivers a powerful combination of visibility, capacity and reliability, making it ideal for modern hospitality environments.
