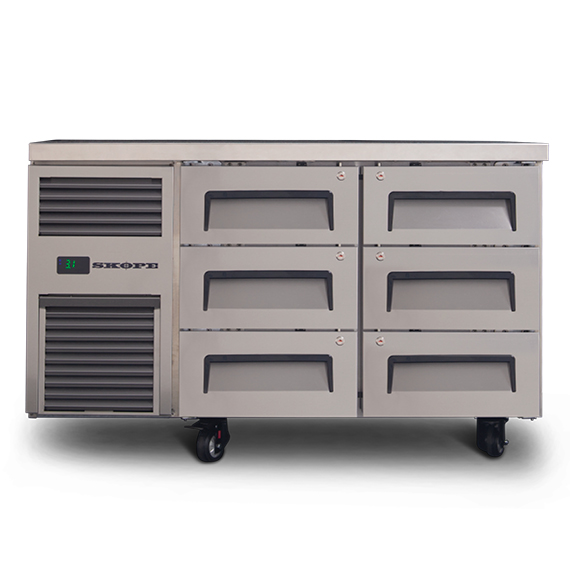

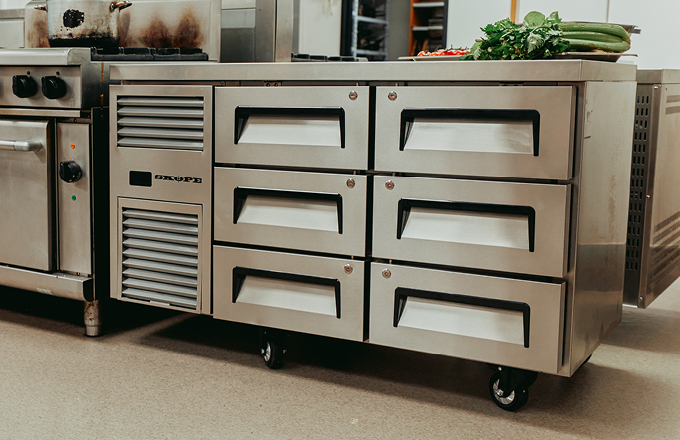

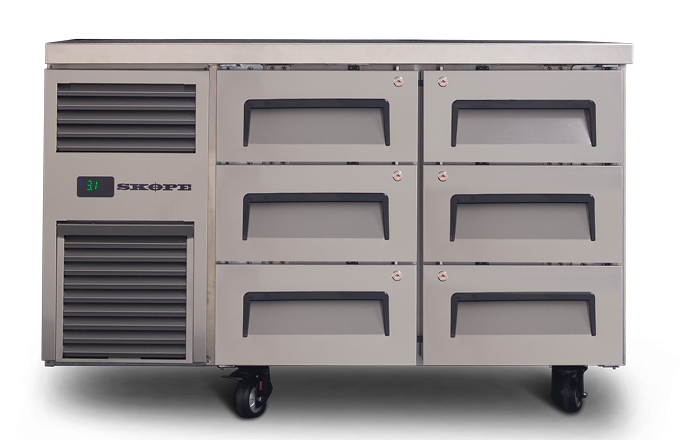

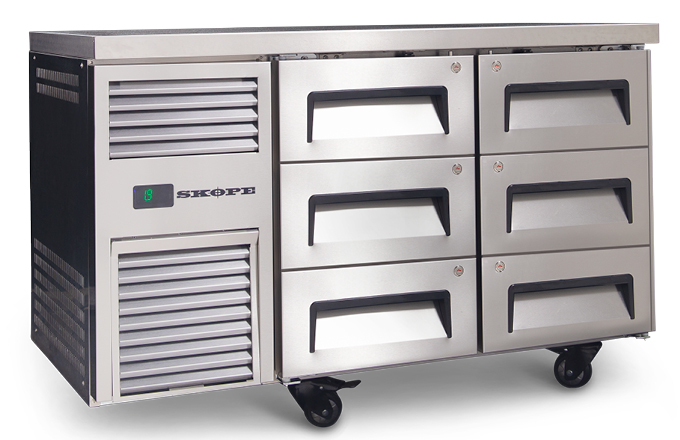

SKOPE ReFlex 6 Drawer Undercounter Fridge
The SKOPE ReFlex RF7.UBR.2.D6 is a high-capacity commercial underbench drawer fridge designed for professional kitchens that require organised ingredient storage and rapid access during service. Featuring heavy-duty stainless steel construction, fully extendible refrigerated drawers.
Six Draw Undercounter Fridge
90 L
Refrigerator
The SKOPE ReFlex RF7.UBR.2.D6 is a high-capacity commercial underbench drawer fridge designed for professional kitchens that require organised ingredient storage and rapid access during service. Featuring heavy-duty stainless steel construction, fully extendible refrigerated drawers.
| Model |
SKOPE – RF7.UBR.2.D6 |
| Dimensions (WxDxH) |
1290 x 700 x 850 mm |
| Weight/Volume (net) |
142 Kg / 90 L |
| Temperature range |
+1°C to +4°C (adjustable with SKOPE-connect™ -2°C to +15°C) |
| Max ambient temperature |
+40°C |
| Energy consumption |
2.37 kWh/24 h |
| Ventilation requirements |
No ventilation required on top, sides, back or bottom. All ventilation through front panel. |
| Refrigeration |
R290 |
| Voltage |
230v / 50hz / 1ph |
| Current draw / nominal capacity |
2.0 amp / 450 watts |
6 Drawer Underbench Fridge
The SKOPE ReFlex RF7.UBR.2.D6 is a high-capacity commercial under bench drawer fridge designed for professional kitchens that require organised ingredient storage and rapid access during service. Featuring heavy-duty stainless steel construction, fully extendible refrigerated drawers and smart connectivity capability, this model provides dealers and resellers with a powerful solution for hospitality, healthcare, education and high-volume catering environments across the UK.
Built for High-Performance Commercial Kitchens
Constructed with 304 AISI stainless steel interior and exterior, the RF7.UBR.2.D6 is designed for durability in demanding foodservice environments. The coved internal floor improves hygiene and simplifies cleaning, while the heavy-duty 45mm stainless steel worktop (over an insulated cyclopentane foamed core) allows the cabinet to double as a practical prep surface.
The cabinet features six fully extendible refrigerated stainless steel drawers, arranged in two banks of three. Each drawer includes individual key locks for secure storage and is designed to accept GN 1/1 gastronorm pans up to 100mm deep (sold separately), making it ideal for ingredient storage and prep-line operations.
With external dimensions of 850mm (H) x 1290mm (W) x 700mm (D) (with castors fitted), the cabinet offers excellent storage organisation while maintaining an efficient undercounter footprint.
Reliable Chilled Performance
Engineered to deliver stable refrigeration in demanding kitchen environments:
- Temperature range: 1°C to 4°C (adjustable via SKOPE-connect™ from -2°C to 15°C)
- Maximum ambient temperature: 40°C
- Refrigerant: R290 natural refrigerant (80g)
- Energy consumption: 2.37 kWh per 24 hours
- GEMS Class: 4M1
The high 40°C ambient rating ensures reliable performance even in hot kitchen environments where traditional refrigeration can struggle.
Removable Side-Mounted Refrigeration Cartridge
The RF7.UBR.2.GD features a side-mounted, integral removable refrigeration cartridge, designed to simplify servicing and reduce maintenance downtime.
For dealers and service partners this offers:
- Faster access for maintenance
- Reduced service disruption
- Lower long-term service costs
- Improved uptime for operators
This service-friendly design makes the unit particularly attractive for national chains and multi-site operators.
Smart Connectivity as Standard
The RF6.UBR.1.SD features the SCS Connect controller, compatible with SKOPE-connect™ via Bluetooth wireless technology.
For dealers and multi-site operators, this enables:
- Remote temperature monitoring
- Data visibility for compliance reporting
- Improved food safety assurance
- Reduced service risk through proactive monitoring
Connectivity adds measurable value, particularly for national chains, facilities managers and healthcare operators requiring temperature control documentation
Flexible Drawer Storage Configuration
- 6 fully extendible stainless steel refrigerated drawers
- Drawers designed to accept GN 1/1 gastronorm pans (100mm deep)
- Individual key locks for secure storage
- Net volume: 90 litres
- Gross volume: 248 litres
The drawer format allows chefs to organise ingredients efficiently, improving workflow and speed during service.
Installation Versatility
Designed for easy specification and installation:
- 220–240V single phase supply
- Supplied with 13 amp plug and 2m lead
- Supplied with removable castors
- Optional height-adjustable legs (865mm–905mm)
- No plumbing required
- No ventilation clearance required (top, sides, back or bottom)
The zero-clearance ventilation design allows flush installation, offering excellent flexibility for kitchen planners and designers.
Related SKOPE products
A Premium Addition to Your Refrigeration Portfolio
As part of the SKOPE ReFlex refrigeration platform, the RF7.UBR.2.D6 provides dealers with a highly practical underbench storage solution that complements solid-door, glass-door and freezer variants within the range.
Key dealer benefits include:
- Six fully extendible refrigerated drawers
- GN-compatible ingredient storage
- 40°C ambient performance rating
- Natural refrigerant compliance
- Removable refrigeration cartridge for simplified servicing
- Smart connectivity capability
The RF7.UBR.2.D6 delivers an organised, chef-friendly refrigeration solution designed to support efficient kitchen workflows in modern foodservice environments.
