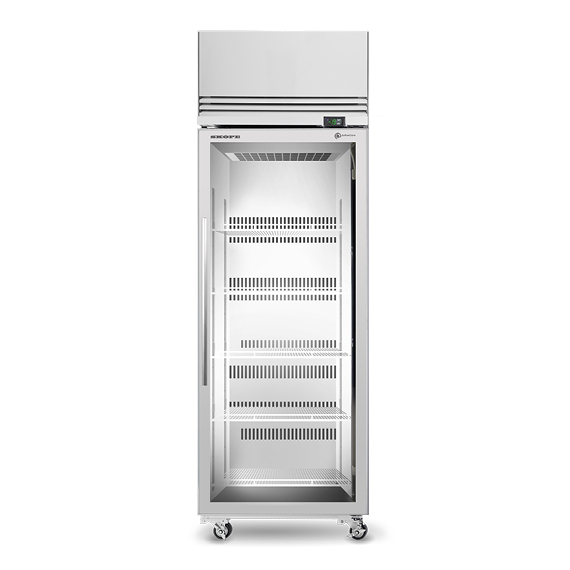

SKOPE ActiveCore 1 Glass Door Top Mount Upright Display Freezer
The SKOPE TMF650N-A is a high-efficiency commercial upright display freezer designed for both front-of-house merchandising and back-of-house frozen storage. Combining premium display visibility with powerful freezing performance, this model provides dealers and resellers with a versatile solution.
Glass Door Upright Display Freezer
557 L
Freezer
The SKOPE TMF650N-A is a high-efficiency commercial upright display freezer designed for both front-of-house merchandising and back-of-house frozen storage. Combining premium display visibility with powerful freezing performance, this model provides dealers and resellers with a versatile solution.
| Model |
SKOPE – TMF650N-A |
| Dimensions (WxDxH) |
740 x 745 x 2210 mm |
| Weight/Volume (net) |
160 Kg / 557 L |
| Temperature range |
-18°C to -21°C (adjustable with SKOPE-connect™ -12°C to -26°C) |
| Max ambient temperature |
+40°C |
| Energy consumption |
10.47 kWh/24 h |
| Ventilation requirements |
No ventilation required on sides or bottom |
| Refrigeration |
R290 |
| Voltage |
230v / 50hz / 1ph |
| Current draw / nominal capacity |
5.5 amp / 920 watts |
1 Glass Door Top Mount Upright Display Freezer
The SKOPE TMF650N-A is a high-efficiency commercial upright display freezer designed for both front-of-house merchandising and back-of-house frozen storage. Combining premium display visibility with powerful freezing performance, this model provides dealers and resellers with a versatile solution for cafés, retail environments, convenience stores, bars and quick-service operations across the UK.
SKOPE Products are now available on Specifi
Search ‘SKOPE UK’ in the manufacturers list and request access
SKOPE Products are now available on AutoQuotes
Search ‘SKOPE’ in the Catalogue
Built for Display & Freezing Performance
Manufactured from powder-coated galvanised steel, the TMF650N-A is engineered for durability while maintaining a clean, professional retail appearance. The cabinet features a triple-glazed heated glass door with argon-filled insulated panels and Active Condensation Control, ensuring maximum product visibility while preventing condensation build-up.
An unlit sign panel is included, allowing operators to apply their own branding and enhance in-store merchandising.
With external dimensions of 740mm (W) × 745mm (D) × 2210mm (H), the cabinet offers strong vertical display capacity while maintaining a compact footprint suited to retail and hospitality environments.
High-Performance Freezing Capability
Engineered to deliver reliable frozen storage in demanding commercial environments:
- Temperature range: -18°C to -21°C (adjustable via SKOPE-connect™ from -12°C to -26°C)
- Maximum ambient temperature: 40°C
- Energy consumption: 10.47 kWh per 24 hours
- GEMS Star Rating: 4-star energy rating
- Product classification: L1 (frozen food safe)
The freezer is designed to maintain stable temperatures even in high ambient environments, ensuring food safety and product quality.

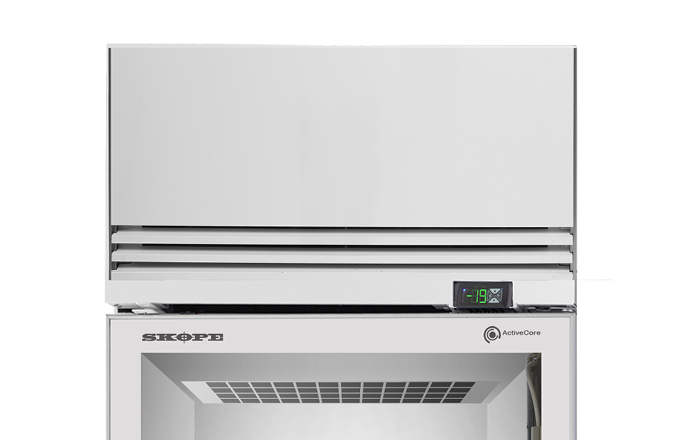

Top-Mounted Removable Refrigeration Cartridge
The TMF650N-A features a top-mounted, fully removable refrigeration cartridge, enabling efficient servicing and reduced downtime.
For dealers and service engineers this provides:
- Fast and safe access for maintenance
- Reduced operational disruption
- Lower lifetime servicing costs
- Improved uptime for operators
This modular refrigeration system is particularly beneficial for multi-site operators and service networks.
Smart Connectivity as Standard
The RF6.UBR.1.SD features the SCS Connect controller, compatible with SKOPE-connect™ via Bluetooth wireless technology.
For dealers and multi-site operators, this enables:
- Remote temperature monitoring
- Data visibility for compliance reporting
- Improved food safety assurance
- Reduced service risk through proactive monitoring
Connectivity adds measurable value, particularly for national chains, facilities managers and healthcare operators requiring temperature control documentation

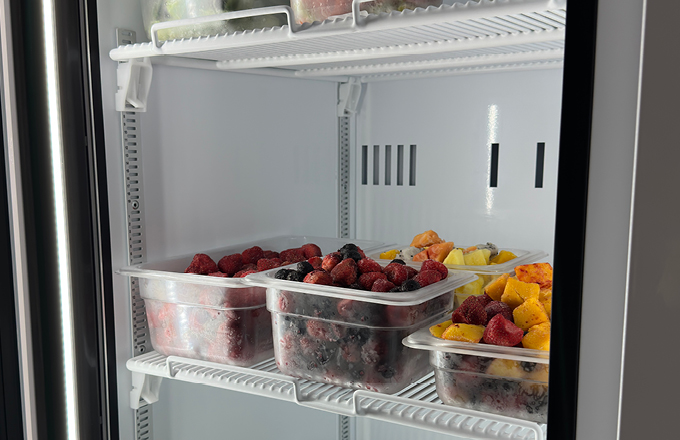

Optimised Display Storage Configuration
- 1 triple-glazed heated glass swing door
- 5 adjustable plastic-coated wire shelves
- Full-width shelving for efficient product display
- Internal LED lighting (1400mm, 15W)
- Capacity: 557 litres
The cabinet is designed to maximise product visibility and accessibility, supporting impulse purchases in retail environments.
Installation Versatility
Designed for flexible installation across commercial environments:
- 220–240V single phase supply
- Supplied with 13 amp plug and 2m lead
- Castor-mounted for easy positioning
- No plumbing required
Ventilation requirements:
- 300mm clearance above cabinet
- Minimal rear clearance required (10mm)
- No side clearance required
Related SKOPE products
A High-Impact Addition to Your Refrigeration Portfolio
The SKOPE TMF650N-A provides dealers with a premium display freezer solution that combines merchandising appeal with reliable freezing performance.
Key dealer benefits include:
- Triple-glazed heated glass door for clear product display
- Active Condensation Control technology
- Large 557L frozen display capacity
- Natural refrigerant for reduced environmental impact
- Removable refrigeration cartridge for simplified servicing
- Smart connectivity via SKOPE-connect™
The TMF650N-A delivers a powerful combination of visibility, performance and efficiency, making it ideal for modern retail and hospitality environments.
