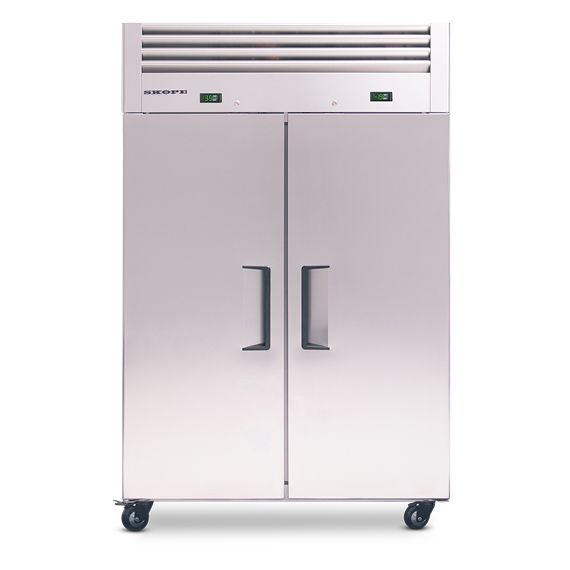

SKOPE ReFlex 2 Solid Door Upright Combo Fridge / Freezer
The SKOPE ReFlex RF8.UPC.2.SD is a versatile commercial upright combo cabinet designed to provide both chilled and frozen storage within a single footprint. Featuring durable stainless steel construction, independent fridge and freezer compartments, removable refrigeration cartridges and smart connectivity capability.
Double Door Upright Fridge/Freezer
403 L x2
Combination Fridge/Freezer
The SKOPE ReFlex RF8.UPC.2.SD is a versatile commercial upright combo cabinet designed to provide both chilled and frozen storage within a single footprint. Featuring durable stainless steel construction, independent fridge and freezer compartments, removable refrigeration cartridges and smart connectivity capability.
| Model |
SKOPE – RF8.UPC.2.SD |
| Dimensions (WxDxH) |
1400 x 820 x 2035 mm |
| Weight/Volume (net) |
227 Kg / 403 x2 L |
| Temperature range |
Freezer -21°C to -18°C (adjustable with SKOPE-connect -26°C to -12°C) |
| Max ambient temperature |
+40°C |
| Energy consumption |
9.36 kWh/24 h |
| Ventilation requirements |
No ventilation required on sides, back or bottom. 300mm clearance require above unit |
| Refrigeration |
R290 |
| Voltage |
230v / 50hz / 1ph |
| Current draw / nominal capacity |
6.0 amp / 1000 watts |
2 Solid Door Upright Combo Fridge / Freezer
The SKOPE ReFlex RF8.UPC.2.SD is a versatile commercial upright combo cabinet designed to provide both chilled and frozen storage within a single footprint. Featuring durable stainless steel construction, independent fridge and freezer compartments, removable refrigeration cartridges and smart connectivity capability, this model provides dealers and resellers with a flexible refrigeration solution for professional kitchens, hospitality venues and high-volume foodservice environments across the UK.
SKOPE Products are now available on Specifi
Search ‘SKOPE UK’ in the manufacturers list and request access
SKOPE Products are now available on AutoQuotes
Search ‘SKOPE’ in the Catalogue
Dual Temperature Storage in One Cabinet
The RF8.UPC.2.SD combines a full refrigerator compartment and a full freezer compartment within one upright cabinet, allowing operators to maximise kitchen space while maintaining separate temperature zones for chilled and frozen products.
The right-hand door houses the refrigerator compartment, while the left-hand door provides frozen storage, making it easy for kitchen staff to organise ingredients efficiently during service. The cabinet features two self-closing, lockable solid swing doors with generous internal access.
With external dimensions of 2035mm (H) × 1400mm (W) × 820mm (D) (with castors fitted), the unit delivers substantial combined storage capacity while maintaining an efficient footprint suited to professional kitchens.
Ideal Applications
- Restaurants and hotel kitchens
- Contract catering operations
- Healthcare and institutional catering
- Education catering facilities
- High-volume food preparation environments
- Commercial kitchens requiring both chilled and frozen storage
Reliable Chilled and Frozen Performance
Engineered to deliver dependable refrigeration and freezing performance in demanding commercial kitchens:
Refrigerator compartment
Temperature range: 1°C to 4°C (adjustable via SKOPE-connect™ from -2°C to 15°C)
Freezer compartment
Temperature range: -21°C to -18°C (adjustable via SKOPE-connect™ from -26°C to -12°C)
Additional performance specifications include:
- Maximum ambient temperature: 40°C
- Refrigerant: R290 natural refrigerant
- Energy consumption: 9.36 kWh per 24 hours
- GEMS Class: 5M1 (fridge) / 5L1 (freezer)
This dual-zone configuration allows operators to store chilled ingredients and frozen products within the same cabinet while maintaining optimal food safety temperatures.
Independent Refrigeration Systems
The RF8.UPC.2.SD uses two independent top-mounted removable refrigeration cartridges — one for the refrigerator and one for the freezer compartment.
For dealers and service engineers this offers:
- Simplified servicing and maintenance
- Faster access to refrigeration components
- Reduced downtime during servicing
- Lower lifetime service costs
The fridge cartridge and freezer cartridge can be serviced independently, improving reliability for operators.
Smart Connectivity as Standard
The RF6.UBR.1.SD features the SCS Connect controller, compatible with SKOPE-connect™ via Bluetooth wireless technology.
For dealers and multi-site operators, this enables:
- Remote temperature monitoring
- Data visibility for compliance reporting
- Improved food safety assurance
- Reduced service risk through proactive monitoring
Connectivity adds measurable value, particularly for national chains, facilities managers and healthcare operators requiring temperature control documentation
Flexible Internal Storage Configuration
- 2 self-closing solid swing doors
- 10 adjustable height shelves
- Door-activated LED interior lighting (2 × 1200mm, 12W)
- Net storage capacity: 403 litres per compartment
- Gross storage capacity: 517 litres per compartment
The cabinet provides organised storage for both chilled and frozen products within clearly separated temperature zones.
Installation Versatility
Designed for straightforward installation in professional kitchens:
- 220–240V single phase supply
- Supplied with 13 amp plug and 2m lead
- Supplied with removable castors
- Optional height-adjustable legs (2045mm–2085mm)
- No plumbing required
Ventilation clearance required:
- 300mm clearance above cabinet
- No side, rear or bottom clearance required
Related SKOPE products
A Flexible Addition to Your Refrigeration Portfolio
As part of the SKOPE ReFlex refrigeration platform, the RF8.UPC.2.SD provides dealers with a space-efficient refrigeration solution that combines chilled and frozen storage within a single cabinet.
Key dealer benefits include:
- Combined fridge and freezer storage in one unit
- Independent refrigeration systems for each compartment
- High 40°C ambient performance rating
- Natural refrigerant compliance
- Removable refrigeration cartridges for simplified servicing
- Smart connectivity capability
The RF8.UPC.2.SD delivers flexibility, reliability and service-friendly design, making it ideal for modern commercial kitchens where space and efficiency are critical.
