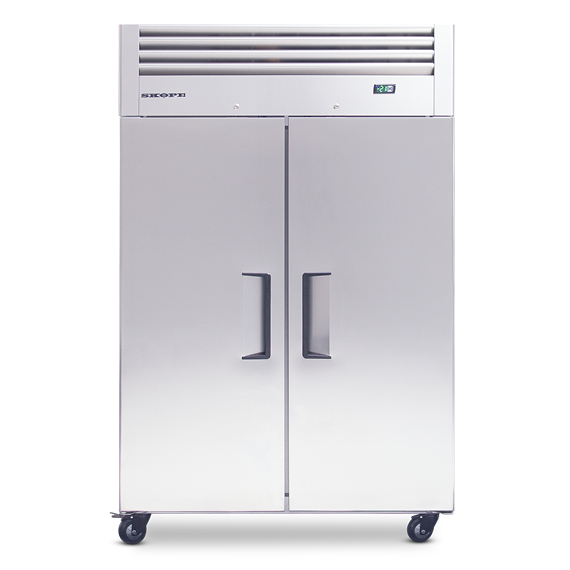

SKOPE ReFlex 2 Solid Door Upright Freezer
The SKOPE ReFlex RF7.UPF.2.SD is a high-capacity commercial upright freezer designed for professional foodservice environments that require reliable frozen storage and efficient product organisation. With robust stainless steel construction, a top-mounted removable freezer cartridge and smart connectivity capability.
Double Door Upright Freezer
712 L
Freezer
The SKOPE ReFlex RF7.UPF.2.SD is a high-capacity commercial upright freezer designed for professional foodservice environments that require reliable frozen storage and efficient product organisation. With robust stainless steel construction, a top-mounted removable freezer cartridge and smart connectivity capability.
| Model |
SKOPE – RF7.UPF.2.SD |
| Dimensions (WxDxH) |
1220 x 760 x 1985 mm |
| Weight/Volume (net) |
171 Kg / 712 L |
| Temperature range |
-21°C to -18°C (adjustable with SKOPE-connect -26°C to -12°C) |
| Max ambient temperature |
+40°C |
| Energy consumption |
10.64 kWh/24 h |
| Ventilation requirements |
No ventilation required on sides, back or bottom. 300mm clearance require above unit |
| Refrigeration |
R290 |
| Voltage |
230v / 50hz / 1ph |
| Current draw / nominal capacity |
5.0 amp / 750 watts |
2 Solid Door Upright Freezer
The SKOPE ReFlex RF7.UPF.2.SD is a high-capacity commercial upright freezer designed for professional foodservice environments that require reliable frozen storage and efficient product organisation. With robust stainless steel construction, a top-mounted removable freezer cartridge and smart connectivity capability, this model offers dealers and resellers a powerful freezing solution for hospitality, healthcare, education and contract catering operations across the UK.
Built for Professional Commercial Kitchens
Constructed with 304 AISI stainless steel interior and exterior, the RF7.UPF.2.SD is engineered for durability in demanding commercial kitchens. The coved internal floor improves hygiene and simplifies cleaning, while the cabinet features two self-closing, lockable solid swing doors for secure frozen storage.
With external dimensions of 1985mm (H) × 1220mm (W) × 760mm (D) (with castors fitted), the cabinet delivers substantial frozen storage capacity while maintaining a footprint suited to professional kitchen layouts.
Powerful Frozen Storage Performance
Engineered to deliver reliable freezing performance in demanding environments:
- Temperature range: -21°C to -18°C (adjustable via SKOPE-connect™ from -26°C to -12°C)
- Maximum ambient temperature: 40°C
- Refrigerant: R290 natural refrigerant (105g)
- Energy consumption: 10.64 kWh per 24 hours
- GEMS Class: 5L1
The high ambient rating ensures consistent freezing performance even in hot commercial kitchens where equipment reliability is critical.
Top-Mounted Removable Freezer Cartridge
The RF7.UPF.2.SD incorporates a top-mounted integral removable freezer cartridge, simplifying servicing and reducing maintenance downtime.
For dealers and service engineers this offers:
- Faster service access
- Reduced disruption during maintenance
- Lower lifetime servicing costs
- Improved operational uptime for operators
The modular refrigeration system allows efficient servicing without removing the cabinet from its installed position.
Smart Connectivity as Standard
The RF6.UBR.1.SD features the SCS Connect controller, compatible with SKOPE-connect™ via Bluetooth wireless technology.
For dealers and multi-site operators, this enables:
- Remote temperature monitoring
- Data visibility for compliance reporting
- Improved food safety assurance
- Reduced service risk through proactive monitoring
Connectivity adds measurable value, particularly for national chains, facilities managers and healthcare operators requiring temperature control documentation
Flexible Internal Storage Configuration
- 2 self-closing solid swing doors
- 10 adjustable height shelves
- Door-activated LED interior lighting (2 × 1200mm, 12W)
- Net storage capacity: 712 litres
- Gross storage capacity: 921 litres
The wide cabinet design provides extensive frozen storage capacity while maintaining organised access to stored products.
Installation Versatility
Designed for simple specification and installation:
- 220–240V single phase supply
- Supplied with 10 amp plug and 2m lead
- Supplied with removable castors
- Optional height-adjustable legs (1995mm–2035mm)
- No plumbing required
Ventilation clearance required:
- 300mm clearance above cabinet
- No side, rear or bottom clearance required
Related SKOPE products
A High-Capacity Addition to Your Refrigeration Portfolio
As part of the SKOPE ReFlex refrigeration platform, the RF7.UPF.2.SD provides dealers with a large-capacity upright freezer solution that complements the wider ReFlex range of underbench refrigeration equipment.
Key dealer benefits include:
- High-capacity 1220mm wide upright freezer design
- 40°C ambient performance rating
- Natural refrigerant compliance
- Removable freezer cartridge for simplified servicing
- Smart connectivity capability
- Durable stainless steel commercial construction
The RF7.UPF.2.SD delivers powerful freezing performance, energy efficiency and service-friendly design, making it ideal for demanding commercial kitchen environments.
